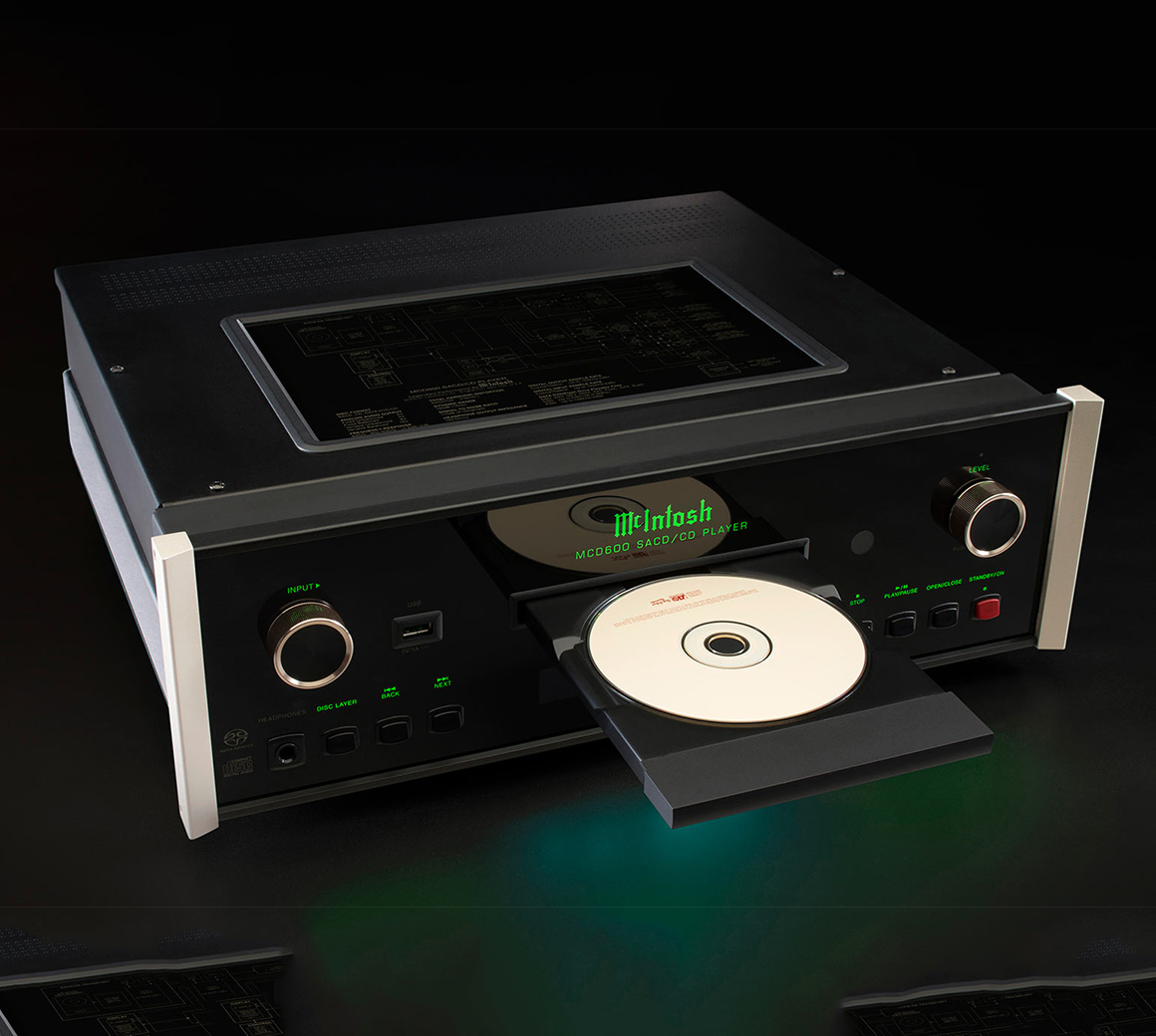

McIntosh MCD600

Premium 8-channel, 32-bit PCM/DSD Quad Balanced DAC, Plays CD/DVD Data Discs & USB flash drives, Fixed & variable analog stereo outputs

Enjoy hours of listening pleasure with the MCD600 SACD/CD Player. At the heart of the MCD600 is a newly designed digital circuit highlighted by a new premium 8-channel, 32-bit PCM/DSD digital-to-analog converter (DAC). The DAC is used in Quad Balanced mode, with 4 DAC channels allocated to each of the left and right audio channels, resulting in truly exceptional sound reproduction. All PCM signals are up-sampled up to 32-bit/384kHz. Besides commercial SACDs and CDs, the MCD600 can also play music from user generated CD or DVD Data Discs as well as USB flash drives. Numerous file formats can be played from these discs and USB flash drives including AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA. Flash drives can easily be connected via the convenient front panel USB input.

Features

Audio Specifications

  • Number of Channels2
  • Fixed Output Level2.0Vrms Unbalanced
    4.0Vrms Balanced
  • Variable Output Level0 - 8.0Vrms Unbalanced
    0 - 16.0Vrms Balanced
  • Output Impedance600 ohms Unbalanced and Balanced
  • Frequency Response4Hz to 40kHz, +0.5, -2dB (SACD)
    4Hz to 20kHz, ±0.5dB (CD)
    4Hz to 40kHz, +0.5, -2dB (Data)
  • Signal To Noise RatioBetter than 110dB (A-weighted)
  • Dynamic RangeBetter than 100dB
  • Total Harmonic Distortion0.002% @ 1000Hz (SACD)
    0.002% @ 1000Hz (CD)
    0.002% @ 1000Hz (Data)
  • Channel SeparationBetter than 98dB (1,000Hz)
  • Headphone Output Impedance47 ohms

Digital Audio Specifications

  • Digital-to-Analog Converter (DAC) TypePremium 8-channel, 32-bit PCM/DSD, Quad Balanced
  • Coaxial Sample Rate16, 24-bit/96kHz
  • Optical Sample Rate16, 24-bit/192kHz
  • USB Sample Rate16, 24-bit/192kHz
  • Digital Coaxial Input0.5V p-p/75 ohms
  • Digital Optical Input-15dbm to -21dbm
  • Digital Output Sample RateUp to 24-bit/192kHz
  • Digital Optical Output-15dbm to -21dbm
  • Digital Coaxial Output0.5V p-p/75 ohms
  • Digital Output JitterN/A
  • Digital XLR OutputN/A
  • Digital MCT OutputN/A

Connectivity

  • Balanced Fixed Output1
  • Unbalanced Fixed Output1
  • Balanced Variable Output1
  • Unbalanced Variable Output1
  • Digital Coaxial Input1
  • Digital MCT Input0
  • Digital Optical Input1
  • Digital USB Input1 (front)
  • Digital USB Input TypeType A
  • Digital Coaxial Output1
  • Digital MCT Output0
  • Digital Optical Output1
  • Digital XLR Output0
  • Headphone Output1/4" High Drive

Control

  • Power Control Input1
  • Power Control Output1
  • Rear Panel Data Input1
  • Rear Panel IR Sensor Input1
  • RS232 Control Input0

General Specifications

  • Disc FormatsSACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA
  • Disc Capacity1
  • Laser TypeTwin Beam
  • Laser Beam Wavelength650nm (SACD)
    790nm (CD)
  • Laser PowerCLASS IIa/CLASS I
  • Standby Power Requirement<0.5 watt

Weights & Dimensions

  • Unit Dimensions (W x H x D)17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm)

Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
